kafka (3)

이커머스 devops 2025. 10. 17. 18:09

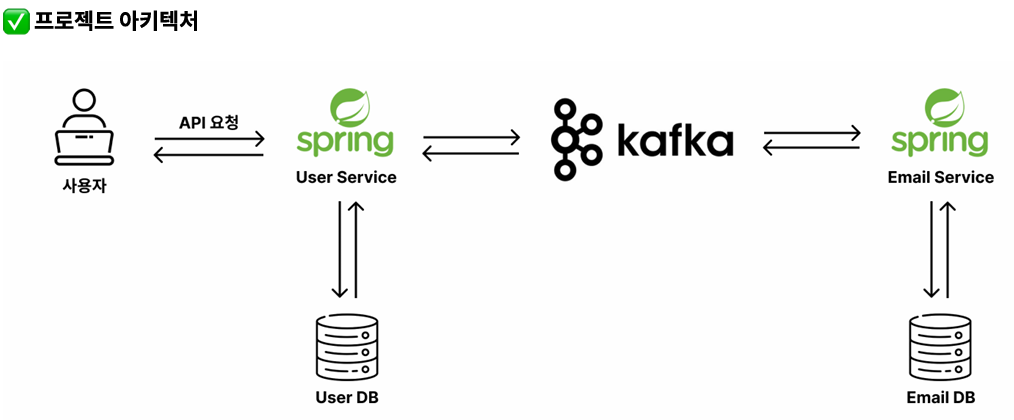

회원가입 하면 회원가입 축하 이메일 발송

회원 가입 기능 - 회원 가입한 사용자 정보 DB에 저장
이메일 발송 기능 - 이메일 발송 기록 DB에 저장

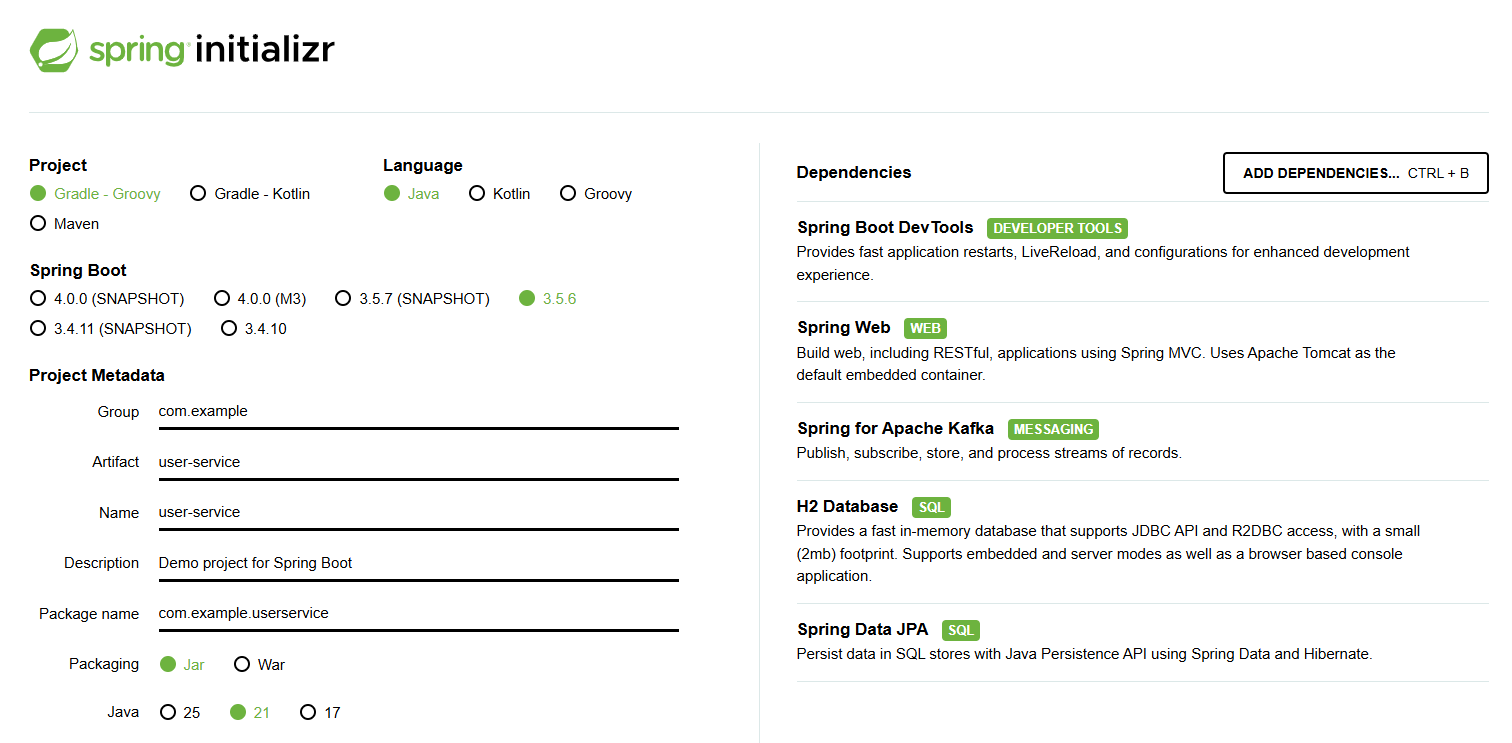

- userService 프로젝트 생성

server:
  port: 8080

spring:
  kafka:
    bootstrap-servers:
      - 43.201.26.204:9092
      - 43.201.26.204:19092
      - 43.201.26.204:29092
    producer:
      key-serializer: org.apache.kafka.common.serialization.StringSerializer
      value-serializer: org.apache.kafka.common.serialization.StringSerializer
      properties:
        partitioner.class: org.apache.kafka.clients.producer.RoundRobinPartitioner

  h2:
    console:
      enabled: true
  datasource:
    url: jdbc:h2:mem:userDB
    driver-class-name: org.h2.Driver
    username: sa
    password:

- application.yml 수정

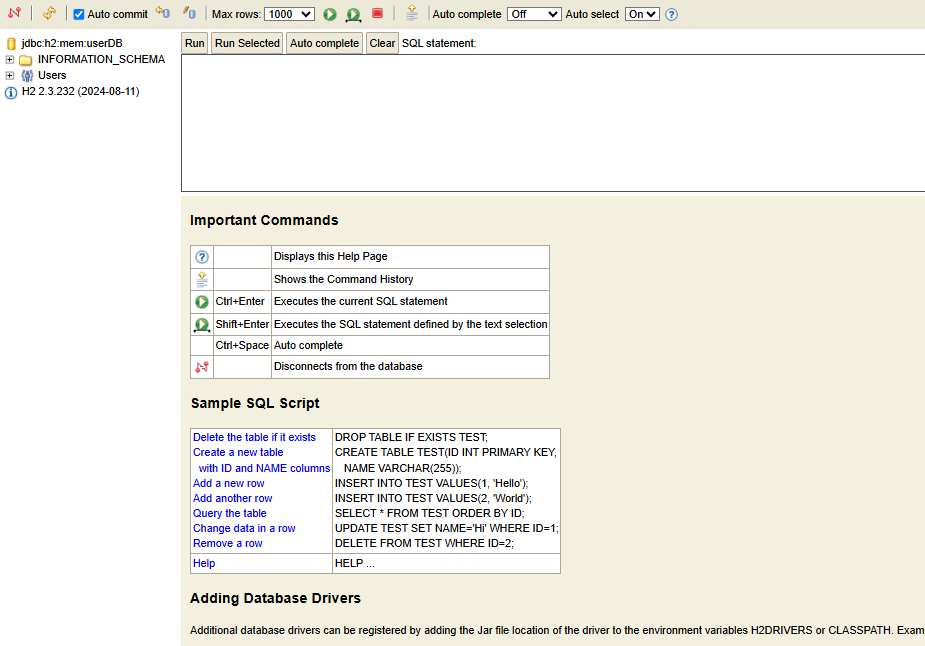

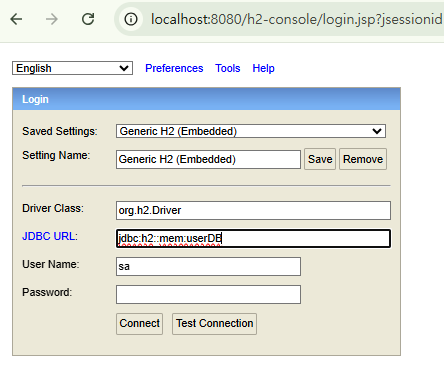

- localhost:8080/h2-console

- 연동 확인

@Entity
@Table(name="users")
public class User {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String email;

    private String name;

    private String password;

    public User() {
    }

    public User(String email, String name, String password) {
        this.email = email;
        this.name = name;
        this.password = password;
    }

    public Long getId() {
        return id;
    }

    public String getEmail() {
        return email;
    }

    public String getName() {
        return name;
    }

    public String getPassword() {
        return password;
    }
}

public interface UserRepository extends JpaRepository<User, Long> {
}

public class SignUpRequestDto {
    private String email;

    private String name;

    private String password;

    public String getEmail() {
        return email;
    }

    public String getName() {
        return name;
    }

    public String getPassword() {
        return password;
    }
}

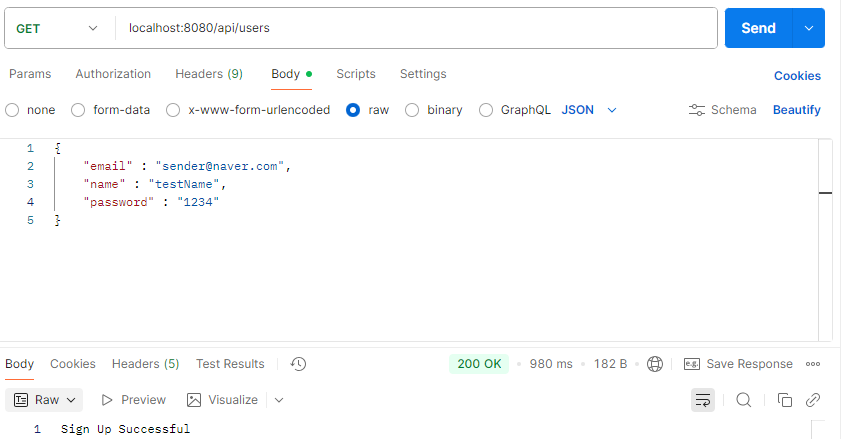

@RestController
@RequestMapping("/api/users")
public class UserController {
    private final UserService userService;
    public UserController(UserService userService) {
        this.userService = userService;
    }

    @GetMapping
    private ResponseEntity<String> singUp(@RequestBody SignUpRequestDto signUpRequestDto) {
        userService.signUp(signUpRequestDto);
        return ResponseEntity.ok("Sign Up Successful");
    }
}

public class UserSignedUpEvent {
    private Long userId;
    private String email;
    private String name;

    public UserSignedUpEvent(Long userId, String email, String name) {
        this.userId = userId;
        this.email = email;
        this.name = name;
    }

    public Long getUserId() {
        return userId;
    }

    public String getEmail() {
        return email;
    }

    public String getName() {
        return name;
    }
}

@Service
public class UserService {
    private final UserRepository userRepository;
    private final KafkaTemplate<String, String> kafkaTemplate;
    public UserService(UserRepository userRepository, KafkaTemplate<String, String> kafkaTemplate) {
        this.userRepository = userRepository;
        this.kafkaTemplate = kafkaTemplate;
    }

    public void signUp(SignUpRequestDto signUpRequestDto) {
        User user = new User(
                signUpRequestDto.getEmail(),
                signUpRequestDto.getName(),
                signUpRequestDto.getPassword()
        );

        User savedUser = userRepository.save(user);

        UserSignedUpEvent userSignedUpEvent = new UserSignedUpEvent(
                savedUser.getId(),
                savedUser.getEmail(),
                savedUser.getName()
        );
        this.kafkaTemplate.send("user.signed-up", toJsonString(userSignedUpEvent));
    }

    private String toJsonString(Object object) {
        ObjectMapper objectMapper = new ObjectMapper();
        try {
            String message = objectMapper.writeValueAsString(object);
            return message;
        } catch (JsonProcessingException e) {
            throw new RuntimeException("JSON 직렬화 실패");
        }
    }
}

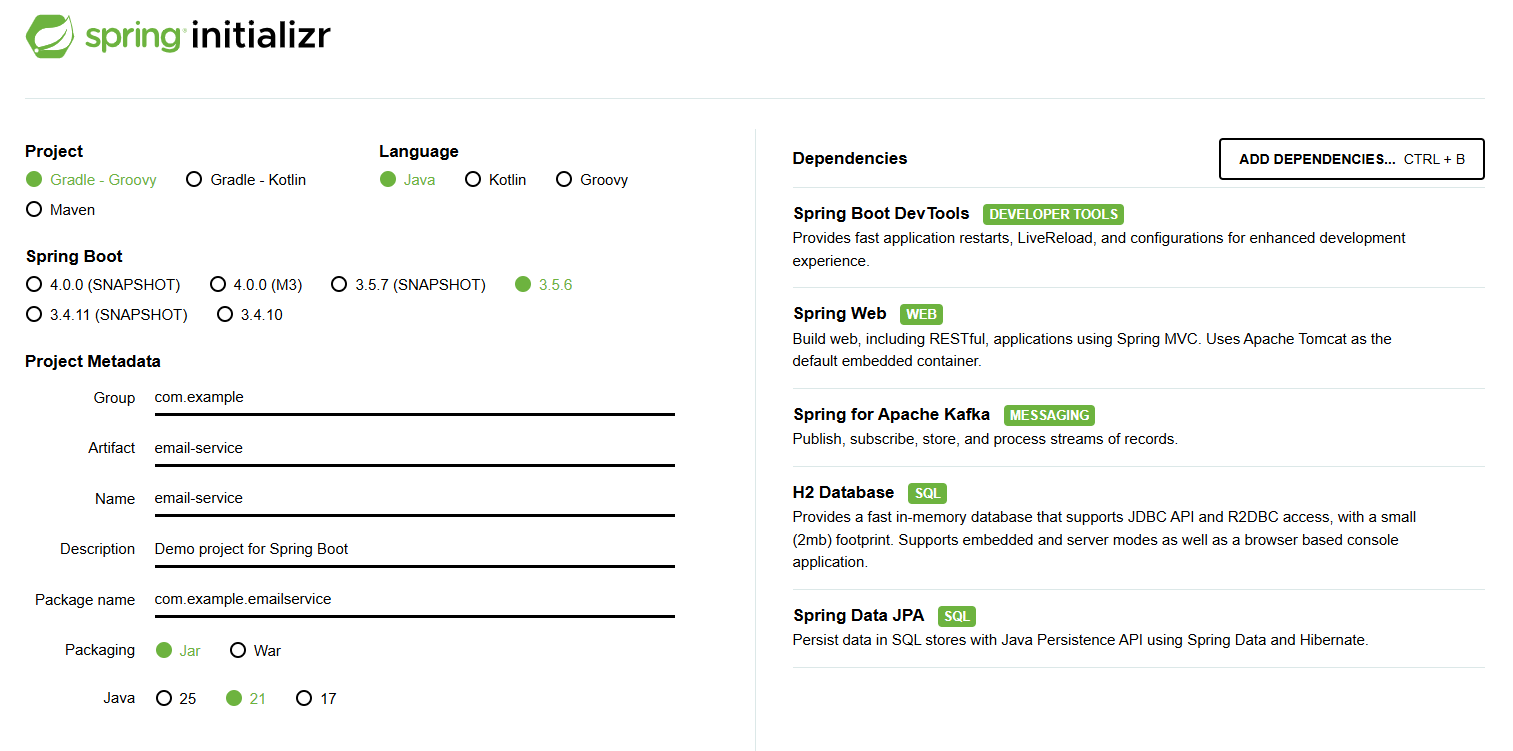

- emailService 프로젝트 생성

server:
  port: 8081

spring:
  kafka:
    bootstrap-servers:
      - 43.201.26.204:9092
      - 43.201.26.204:19092
      - 43.201.26.204:29092
    consumer:
      key-deserializer: org.apache.kafka.common.serialization.StringDeserializer
      value-deserializer: org.apache.kafka.common.serialization.StringDeserializer
      auto-offset-reset: earliest

  h2:
    console:
      enabled: true
  datasource:
    url: jdbc:h2:mem:emailDB
    driver-class-name: org.h2.Driver
    username: sa
    password:

- application.yml 수정

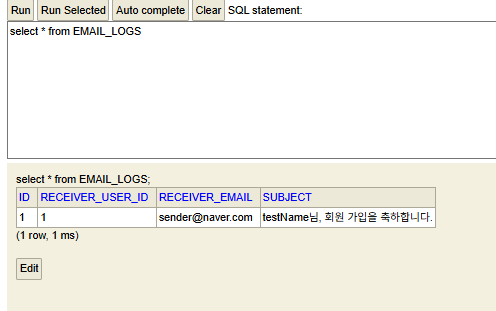

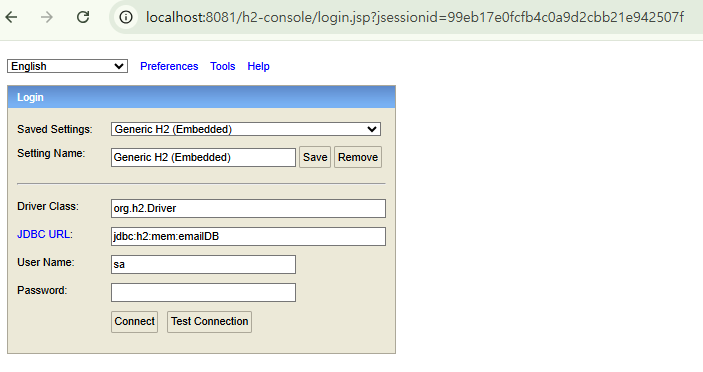

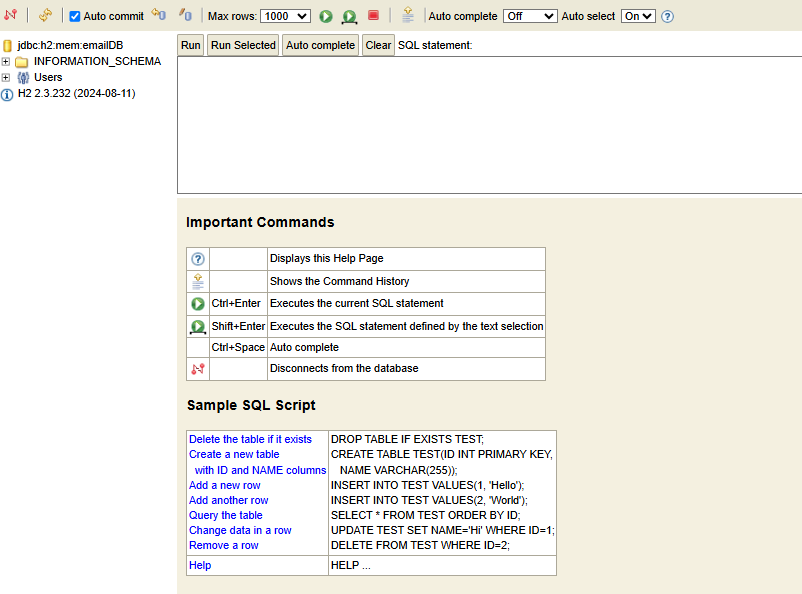

- localhost:8081/h2-console

- 연동 확인

public class UserSignedUpEvent {
    private Long userId;
    private String email;
    private String name;

    public UserSignedUpEvent() {}

    public UserSignedUpEvent(Long userId, String email, String name) {
        this.userId = userId;
        this.email = email;
        this.name = name;
    }

    public static UserSignedUpEvent fromJson(String json) {
        try {
            ObjectMapper mapper = new ObjectMapper();
            return mapper.readValue(json, UserSignedUpEvent.class);
        } catch (JsonProcessingException e) {
            throw new RuntimeException("JSON 파싱 실패");
        }
    }

    public Long getUserId() {
        return userId;
    }

    public String getEmail() {
        return email;
    }

    public String getName() {
        return name;
    }
}

@Entity
@Table(name = "email_logs")
public class EmailLog {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private Long receiverUserId;
    private String receiverEmail;
    private String subject;

    public EmailLog() {}

    public EmailLog(Long receiverUserId, String receiverEmail, String subject) {
        this.receiverUserId = receiverUserId;
        this.receiverEmail = receiverEmail;
        this.subject = subject;
    }

    public Long getId() {
        return id;
    }

    public Long getReceiverUserId() {
        return receiverUserId;
    }

    public String getReceiverEmail() {
        return receiverEmail;
    }

    public String getSubject() {
        return subject;
    }
}

public interface EmailLogRepository extends JpaRepository<EmailLog, Long> {
}

@Service
public class UserSignedUpEventConsumer {
    private EmailLogRepository emailLogRepository;

    public UserSignedUpEventConsumer(EmailLogRepository emailLogRepository) {
        this.emailLogRepository = emailLogRepository;
    }

    @KafkaListener(
            topics = "user.signed-up",
            groupId = "email-service",
            concurrency = "3"
    )
    @RetryableTopic(
            attempts = "5",
            backoff = @Backoff(delay = 1000, multiplier = 2),
            dltTopicSuffix = ".dlt"
    )
    public void consume(String message) throws InterruptedException {
        UserSignedUpEvent userSignedUpEvent = UserSignedUpEvent.fromJson(message);

        // 실제 이메일 발송 로직 생략
        String receiverEmail = userSignedUpEvent.getEmail();
        String subject = userSignedUpEvent.getName() + "님, 회원 가입을 축하합니다.";
        Thread.sleep(3000);
        System.out.println("이메일 발송 완료");

        // 이메일 발송 로그 저장
        EmailLog emailLog = new EmailLog(
                userSignedUpEvent.getUserId(),
                receiverEmail,
                subject
        );
        emailLogRepository.save(emailLog);
    }
}

@Service
public class UserSignedUpEventDltConsumer {
    @KafkaListener(
            topics = "user.signed-up.dlt",
            groupId = "email-service"
    )
    public void consume(String message) {
        // 실제 로직 생략
        System.out.println("로그 시스템에 전송 : " + message);
        System.out.println("SLack 알림 발송");
    }
}

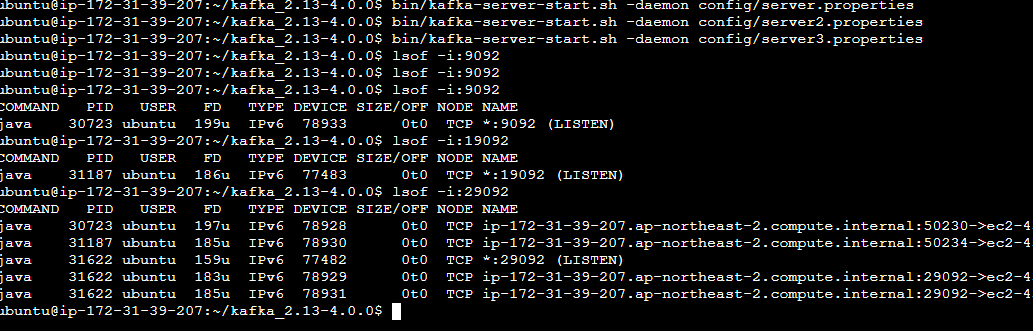

# 서버 3대 백그라운드 실행
$ bin/kafka-server-start.sh -daemon config/server.properties
$ bin/kafka-server-start.sh -daemon config/server2.properties
$ bin/kafka-server-start.sh -daemon config/server3.properties

# 실행 확인
$ lsof -i:9092
$ lsof -i:19092
$ lsof -i:29092
